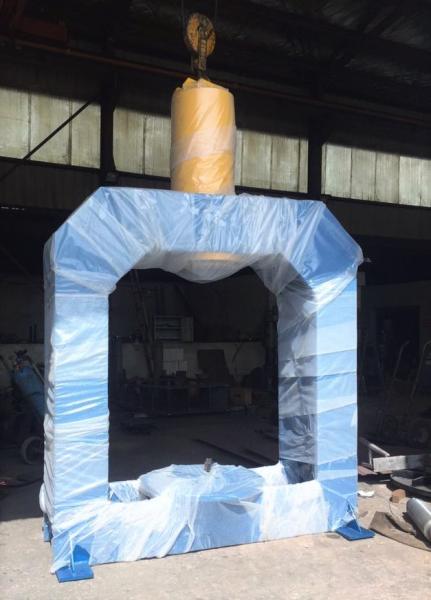

120 Ton Forklift Tire Press Machine , Hydraulic Tyre Press Equipment TP120
| Type | Solid Tire Press Machine |
| Model | TP120 |
| Application | Mounting and dismounting solid tires |
| Capacity | 120Ton |
| Work hydraulic | 15Mpa |
| Range of applicable tire rim | 8inch to 15inch |
Product Specification
- Heavy duty frame: The construction is welded by large-scale beam and channel beam.
-
- High-grade Hydraulic Cylinder: The biston rod is grinded and hard-chromium plated.
-
- Easy pull and press into the rims.
-
- Voltage and phase customized according to different power supply.
-
| Model | TP120 |
| Nominal pressure | 1.2 MN |
| Work hydraulic | 15 Mpa |
| Max Tire Size | 15 Inches |
| Max Cylinder Stroke | 600 mm |
| Motor | 4 KW |
| Oil Tank Capacity | 90 L |
| Size | L2050xW650xH2200 mm |
| Weight | 1600 kg |
Usage method of forklift tire press
First of all , choose a good tooling correctly, put the mould on the work table, and then put the wheel on the mould, handling pressure head to Press the die on the tire and finally with the boot ring loaded. Different types of tyres and wheels need different tooling, the user to install the tire before the selection of tooling, then the disassembly and assembly operations, it will be very convenient and quick. According to the motion mode and the size of the machine, the machine can be divided into manual press and electric press, which is generally suitable for large tonnage forklift truck or truck tire.
Operation Safety Precaution
1. First, always wear a seatbelt when operating a forklift or a forklift tire press. If something should happen and the vehicle tips, this insures that you remain in the cabin and will avoid being crushed. Jumping for a tipping forklift is the major cause of fatality in these types of accidents. You are much safer within the vehicle where you are somewhat protected and secured.
2. Know the proper training for the specific forklift you operate. Take a refresher course if necessary to know all the safety rules and proper operating procedures. Forklift training is essential to do your job safely and correctly.
3. Know the design and layout of where you will be working. Walk through to make sure nothing has been moved that would impede the use of the forklift or its mobility. Be aware of the environment and watch out for others who may mistakenly get in the way of the forklift.
4. Make sure that the forklift used has been properly maintained according to manufacture recommendations. If you notice that something is broken or not working properly, get it fixed before using the machine.
